Lagoon 400 - main image

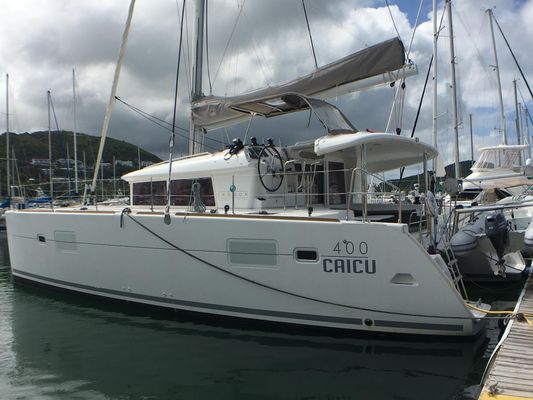

2013 Lagoon 400

location icon Fajardo
Year 2013
Length 40 ft

CAICU is a fully equipped US SPEC 4 cabin 4 head Lagoon 400 with installed factory Gen and AC.  She is phasing out of charter service in the SailCaribe fleet, a boutique operation with the highest standards.  She has seen light usage and excellent maintenance.  Phase out process includes replacement of all items that show wear and tear and refit the vessel to "like new" status. Price is firm!


Year built 2013
Category Sail
Length 40 ft
Beam 23'9 ft
Max. Draft 4 ft
Cabins 4
Double Berths 4
Construction Fiberglass
Keel Other
Drive Type Sail
Engines 2
Total Engine Power 80 hp
Fuel Tanks 2
Fuel Tank Cap. 53 gal
Water Tanks 2
Water Tank Cap. 79 gal
Water Heater Cap. 0 gal
Holding Tanks 4
Holding Tank Cap. 0 gal
Dry Weight 22,817 lb
Bridge Clearance 66'7 ft

Engine 1 Specifications

Make: Yanmar
Drive Type: SailDrive
Fuel: Diesel
Engine Power: 40hp

Engine 2 Specifications

Make: Yammer
Drive Type: SailDrive
Fuel: Diesel
Engine Power: 40hp

Polyester and high quality anti-osmotic resin
FRP construction
Infused Balsa cored hull construction - white
Below the waterline: infused Hull bottom in
solid GRP
Bridge deck and deck in balsa sandwich.
Vacuum bagged and infused with high quality
anti osmotic resin and polyester resin
Solid glass or core-mat sandwich one-piece liners
Glassed or bonde laminated wood bulkheads

Deck Equipment

8 mooring cleats
12V/1000w electric anchor windlass in anchor locker with 10 mm gipsy
Bow safety net with knot-less nylon netting
Outboard stern stainless steel pulpits
Inboard stern stainless steel pulpits with horseshoe buoy and flag pole mounts on one side
Composite forward longitudinal beam with recessed chain run and mooring cleat
Aluminium crossbeam with forestay chainplate, anchor roller and 1 nav light
Double level stainless steel lifelines
Triple level stainless steel lifelines on aft beam
Stainless steel coachouse-mounted handrails
Stainless steel hard top supports-mounted handrails


Cockpit usable as outdoor salon, access to the sea by a stern walkway giving access to the transoms
Hard top bimini with 3 recessed spotlights
Self bailing cockpit
Helm station on port side on the coachouse bulkhead: engine throttle controls, engine control panels, compass, area for electronic equipment, leather covered steering wheel with brake, double helm seat with cushions, access steps from cockpit with s/s handrail, line storage bag.
Steering system: cable steering, s/s shaft rudders, emergency tiller
U shape seating area to starboard
Varnished wooden cockpit table interchangeable with salon coffee table
1 aft cockpit seat locker
1 technical locker (for the optional generator)
1 gas locker under the seats on starboard side of cockpit
1 locker under the lazy boy in cockpit with room to store 1 additional gas tank


CHARTER: 4 cabins , 4 toilets

Large panoramic view salon with wide sliding door and lock
Standing headroom: 2.13m / 7’
7 X 12V halogen salon overhead lights
Seating for 5 people
Varnished wood coffee table that can be swapped with large wooden cockpit table. 1 set of tall aluminum legs and 1 set of short aluminum legs.
3 storages compartments under settee
2 opening hatches in forward vertical coachouse windows

Forward port Cabin
Entrance from port gangway
Standing headroom: 2.08m / 6’ 10”
2X 12V halogen overhead lighting
2X 12V halogen reading lights on the ceiling
Double bed convertible in 2 single beds
Double bed: 2.06m X 1.76 m x 1.16m / 6’ 9” X 5’9’’ x 3’10’’ approx.
2 single beds: 2.06m X 0.69 m x 0.58m / 6’ 9” X 2’3’’ x 1’11’’ approx.
1 drawer and 2 lockers on front of bed
Storage under the bed
Night stands with storage on both sides of bed
1 hanging locker
1 opening deck hatch with blind
1 opening port hull with curtain
1 large one-way fixed window with curtain

Forward port head
Access from forward port cabin door
2X 12 V halogen overhead lighting
Standing headroom: approx 2.00m/ 6’7”
Large manual marine head (cabinet for optional holding tank with gravity drain/ and deck pump out)
Fibreglass washbasin with hot/cold mixer tap,
1 fibreglass grating in the shower
1shower head holder
1 chrome towel holder
1 chrome double towel hook
Shower sump pump with float switch
1 opening deck hatch with blind
1 toilet paper holder under the washbasin
1 cabinet with 2 mirrors and shelves
1 toothbrush cup in the cabinet above the washbasin


In salon, communicating directly with cockpit via a sliding glass window
Standing headroom: 2.09 m / 6’ 10”
3 X 12V halogen overhead lights
White laminate countertop with wooden fiddles
Double S/S sink with hot and cold mixer tap
Drainer counter for dish drying
3 burner gas stove
Separate oven with grill (enamelled interior)
2 drawers
Cupboard under sink with waste bin behind door
Starboard galley column with separate enamelled butane oven / with broiler and cabinet for microwave oven (optional).
Storage under countertop, which can accommodate an additional optional refrigerator (110 L/ 29 US gal) or a freezer (110 L/ 29 US gal)
1 x12V fridge 110 L / 29 US gal with front opening


Access from opening hatch with stainless steel gas strut in transom
2 x 40 hp sail drive diesel engines
Sound proofed engine compartments
Engine compartments air intakes on aft crossbeam
Engine compartments 12V blowers
1 start battery 12V – 70 Ah (per engine)
Fuel filter with water separator
Sea water filter
Exhausts with wet mufflers


12 V backlit electrical panel on port side of salon
LCD display with: voltmeter, Amp-meter, water level gauge, diesel level gauge, low voltage alarm for batteries
2 house batteries: 12V - 140 Ah
Battery switches:
- House bank: under bed in aft port cabin
- Engine start: under bed in aft port & stbâbord cabin


1 square top mainsail, sail area 56 m2/603 sq.ft. and battens
1 furling genoa, sail area 28 m2/301 sq.ft. with UV protective strip


Standing Rigging
Anodized aluminium mast, P : 15.66m/51’5’’ deck stepped, (mast clearance : 20.30m / 66’7’’)
Double spreaders rig
Anodized aluminium boom
2 hull-mounted shroud chain plates
1 crossbeam-mounted forestay chain plate

Running Rigging
1 double purchase mainsail halyard
1 genoa halyard
1 multi-purchase mainsail sheet and traveller on hard top, led back to the helm station
2 genoa sheets led back to the helm station
2 genoa sheet tracks with adjustable cars
3 winches at the helm station
1 winch, 46.2 ST for:
- 1 main sail halyard
- 1 genoa halyard
- Gennaker halyard and sheets (option)
- 1 boom topping lift
- 1 genoa furling line
1 winch, 46.2 ST for:
- 1 main sail sheet
- Reef 1 single line
- Reef 2 single line
- Reef 3 single line
1 winch, 46.2 ST for:
- 1 port side genoa sheet
- 1 port side main sail traveller line
- 1 starboard main sail traveller line
1 fixed mainsail outhaul
1 stopper for genoa furling line on deck
2 lazy jacks adjustable at mast base
2 winch handle with holder


The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel.
